This rice bucket elevator is a necessary machine working in the rice mill production line, to convey the paddy rice materials from one machine to another, is a good working tool to make sure the rice mill plant automatic working.

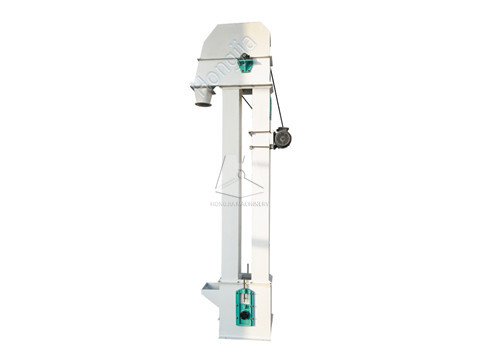

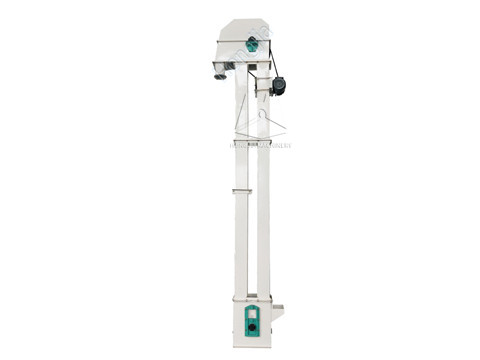

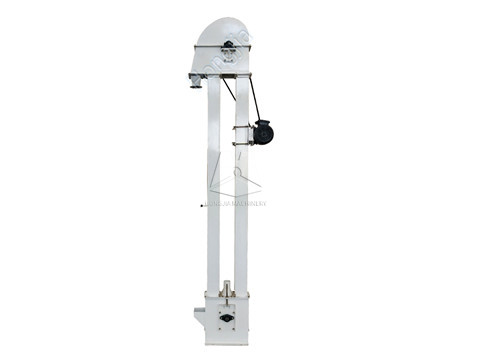

Rice Bucket Elevator Conveyor In Rice Mill Plant
TDTG Rice Bucket Elevator can be used for high-efficiency and low-capacity vertical lifting of granular, granular, or powdery materials in grain, food, feed, chemical, and other industries. The bucket elevator conveyor realizes reliable conveying of materials during work, with less residual material and strong stability.
As for the lift, its height and working capacity can be made according to the actual situation of the rice production line or the feed production line. A perfect working machine is also a basic need for different types of production lines.
The rice bucket elevator is an essential machine in the rice milling production line, which conveys the rice material from one machine to another, and is a good working tool to ensure the automatic work of the rice milling plant.
Rice Bucket Elevator Features
1. It has characteristics of small driving power, inflow feeding, induction discharge, and large capacity of the hopper-intensive layout. There is almost no return material and material digging in the material lifting, so there is less power lost.
2. With a wide range of elevations, this kind of elevator has fewer requirements for the kinds and characteristics of the materials. It can not only elevate powder of average size or granular materials but also can elevate materials of larger size. Besides, it works well in sealing and has less environmental pollution.
3. With advanced design principles and processing methods, it is endowed with reliable and stable operation, which ensures operation reliability. And Its MTBF achieves more than 20000 hours. The lifting height is high, and the lifting machine runs stably, so the height of the lifting height can be achieved.
4. It has a long service life. The feeding pattern is inflow, which doesn’t need to dig with a bucket, and has less extrusion and collision between materials. The machine is designed to ensure there are few materials scattered when feeding and discharging, which reduces the wear and tear of the machine.
Technical Parameter of TDTG Bucket Elevator
For the bucket elevator machine for the rice processing machine, we have different models with different capacities to be suitable for different clients' needs, also if clients have special requirements for the machines, we can customize them for you.
| Model | Capacity(t/h) | Power(kw) | Bucket model | Standard height(m) |
| TDTG18/07 | 1 | 0.75 | 0705 | 3 |
| TDTG20/11 | 3 | 0.75 | 1109 | 5 |
| TDTG20/13 | 5 | 1.1 | 1311 | 5 |
| TDTG20/16 | 8 | 1.5 | 1612 | 5 |
| TDTG20/18 | 10 | 1.5 | 1812 | 5 |
| TDTG26/23 | 15 | 2.2 | 2314 | 5.5 |
| TDTG30/23 | 20 | 2.2 | 2316 | 5.5 |
| TDTG36/28 | 25 | 3 | 2816 | 6 |
| TDTG50/33 | 50 | 5.5 | 3321 | 6.5 |
