Oil/Gas fired steam boilers is a device that generates steam by applying heat energy to water. A steam boiler incorporates the furnace and drum, the furnace is used to burn the fuel and generate heat. The generated heat is transferred to water to make steam, this is the process of boiling. Then the produced saturated steam will be used for various industrial production and other usage.
Oil/Gas Steam Boilers Introduction
An oil/gas steam boiler is a device that generates steam by applying heat energy to water. A steam boiler consists of a furnace and a drum, and the furnace is used to burn fuel to generate heat. The heat generated is transferred to the water to create steam, which is the process of boiling. The saturated steam produced will then be used in various industrial processes and other purposes.

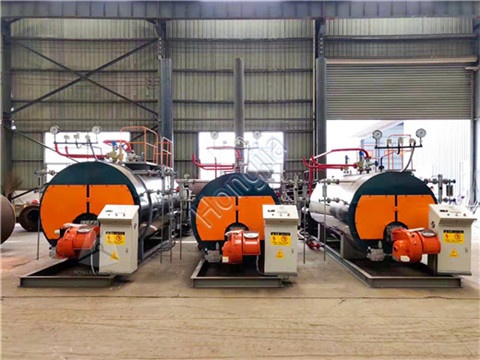

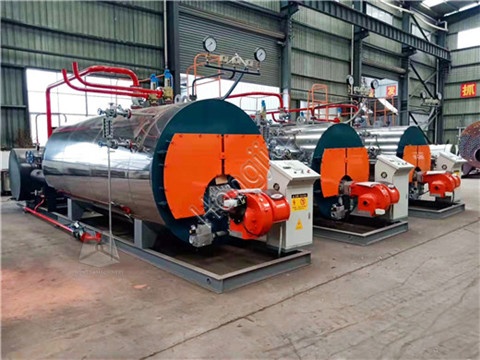

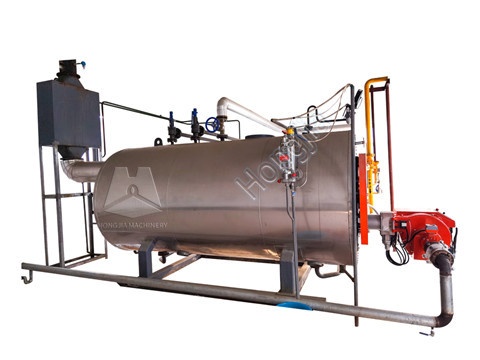

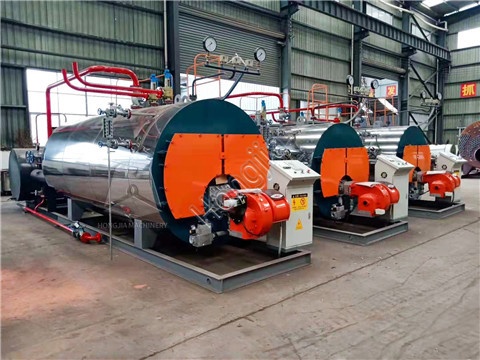

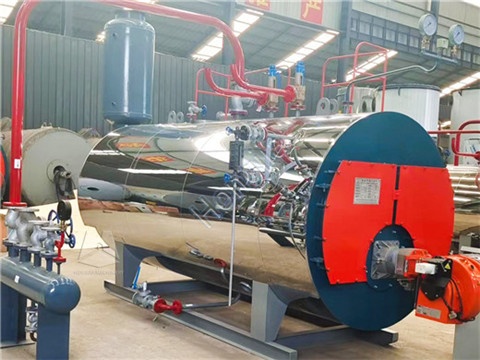

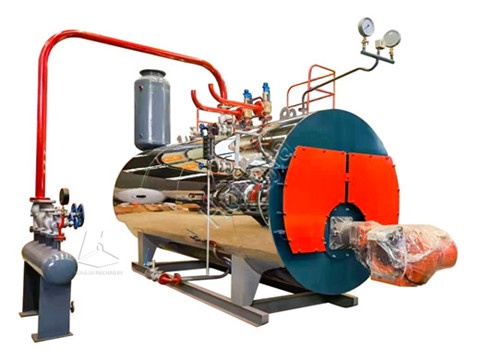

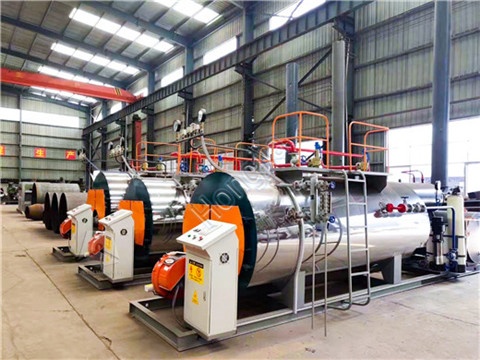

Our horizontal oil-gas steam boiler adopts a horizontal three-pass wet-back structure, a large corrugated furnace, threaded pipe technology, equipped with international first-class brand burners and valve groups, and self-developed high-matching PLC control to achieve a multi-connection system. The locking protection function ensures the safe operation of the equipment. This advanced structure ensures the high efficiency of the boiler. These designs have been the most popular constructions of the whole boiler.
Our company's oil-fired gas boilers are compact in structure, safe in operation, easy to install, low in pollution, and low in noise, and are widely used in industrial production and processing in textile mills, pharmaceutical industries, food and beverage industries, and chemical industries. Industry, clothing industry, food processing industry, and wood processing industry, and can also be used for central heating of enterprises, hotels, hospitals, and civil buildings.
Oil/Gas Steam Boilers Technical Parameters
| Model | HJ1-0.7/1.0 | HJ2-1.0/1.25 | HJ4-1.0/1.25 | HJ6-1.25/1.6 | HJ8-1.25/1.6 |
| Rated evaporation capacity (t/h) | 1 | 2 | 4 | 6 | 8 |
| Rated steam pressure (Mpa) | 0.7/1.0 | 1.0/1.25 | 1.0/1.25 | 1.25/1.6 | 1.25/1.6 |
| Thermal efficiency (％) | >90 | >90.2 | >91 | >91.5 | >91.6 |
| Fuel consumption Light oil (Kg/h) | 66.5 | 133 | 266 | 399 | 532 |
| Fuel consumption Natural gas (Nm³/h) | 75 | 150 | 300 | 450 | 600 |
| Overall dimension (m) | 3.6×2.0×2.0 | 4.8×2.5×2.46 | 5.8×2.85×2.8 | 7.25×3.1×3.15 | 7.45×3.26×3.2 |
| Weight (t) | 4 | 8 | 13 | 19 | 22.6 |
| Body Heating Area (m2) | 25 | 60 | 113 | 181 | 190 |
