The rotary vibrating screen is mainly used for the initial cleaning of large output of rice and wheat before entering the warehouse, the cleaning of drying feed, and the processing and cleaning of the pipeline of the rice processing workshop in rice milling plant.

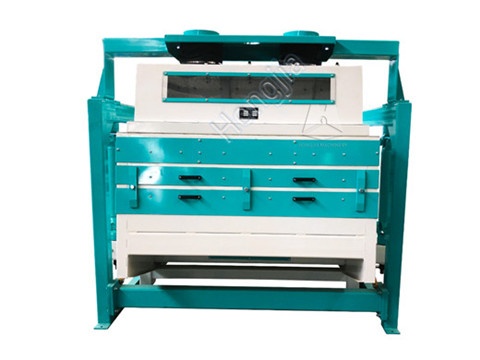

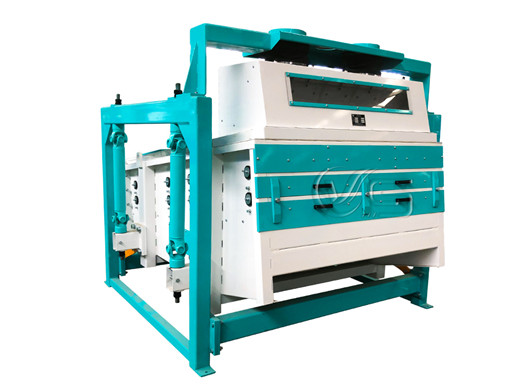

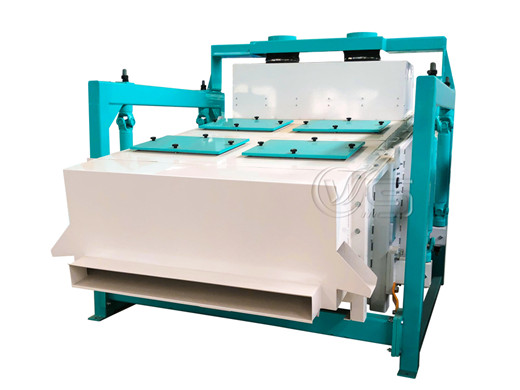

Rice Rotary Vibrating Screen Introduction
The rotary vibrating screen is mainly used for the initial cleaning of large outputs of rice and wheat before entering the warehouse, the cleaning of drying feed, and the processing and cleaning of the pipeline of the rice processing workshop in the rice milling plant. It can be suitable for all kinds of rice, various scenes, and various requirements of rice and wheat cleaning.
The rice cleaner is widely used in food, chemical, wine, and other industries. It has high overall strength, large output, good cleaning and grading effect, universal joint hanger, strong and durable, with feeding uniform material device, metal screen lattice easy to load and unload, bearing free. It works better with the wind separator.
Rice Rotary Vibrating Screen Features
1. Suitable for cleaning large and small materials of large output, widely used in food, chemical, wine, and other industries
2. High overall strength, large output, good cleaning, and grading effect
3. Universal joint boom, strong and durable
4. With feed homogenizer
5. Easy loading and unloading of metal screen
6. Combined material line realizes circular, elliptical, and linear motion, providing production efficiency
7. Visual observation port to observe production situations in real-time
8. Laser cutting ensures the quality and precision of sheet metal parts
9. Carbon dioxide gas-shielded welding process
10. The bouncing ball moves without a dead angle, eliminating all possible blocking
11. Imported spherical roller bearings, high-precision processing of shaft center and bushing use Mobil high temperature resistant lubricating oil, effectively control the temperature of the transmission structure during the continuous production period, and ensure long-term stable operation.
12. Brand motors have reliable quality and stable output
HZXZ Rice Cleaning Machine Working Principle
This machine uses the filter method to separate the size of the material. After the material from the feed pipe is into the eccentric tube, scattered in the bulk material plate. Bulk material with vibration sieve plate, the material evenly into the feed load on the floor, and along the screen on the bottom flow to the top. Large impurities along the upper surface of the screen into the large miscellaneous and exported outside of the machine. The sieve material through the upper sieve falls onto the next screen. The small impurities through the sieve hole to the floor above the screen box and the fine miscellaneous export machine outside.
Vibration Cleaning Sieve Technical Parameters
| Model Specifications/Technical Parameter | Rice pre-cleaning capacity（t/h）（Screen size5*20mm） | Rice pre-cleaning capacity（t/h）（Screen size 4*16mm） | Screen area（㎡） | Rotating speed（r/min） | Power（KW） | Weight(KG） | Oversize(mm) |
| HZXZ150*250-2L | 10-30 | 5-25 | 3.75 | 320 | 3 | 2850 | 2988*2205*2105 |
| HZXZ150*250-3L | 10-30 | 5-25 | 3.75 | 320 | 3 | 2950 | 2988*2205*2105 |
| HZXZ200*250-2L | 15-40 | 8-30 | 5 | 320 | 4 | 3100 | 2988*2705*2105 |
| HZXZ200*250-3L | 15-40 | 8-30 | 5 | 320 | 4 | 3250 | 2988*2705*2105 |
| HZXZ200*300-2L | 20-50 | 10-40 | 6 | 320 | 4 | 3450 | 3500*2800*2152 |
| HZXZ200*300-3L | 20-50 | 10-40 | 6 | 320 | 4 | 3600 | 3500*2800*2152 |
| HZXZ200*360-2L | 25-60 | 15-50 | 7.2 | 320 | 4 | 3800 | 4100*2800*2152 |
| HZXZ200*360-3L | 25-60 | 15-50 | 7.2 | 320 | 4 | 4050 | 4100*2800*2152 |
Zhengzhou VOS Machinery Equipment Co., Ltd. was established in 2000, and has been devoted to the research and development of rice mill machine ever since.
