15T/D Auto Rice Mill Plant Introduction

This 15TPD Rice Mill Project is a small automatic rice mill plant with economical design and high technical skills. It is a complete rice processing plant that contains a rice cleaning machine, rice huller machine, rice separator machine, rice mill machine, rice grader machine, rice polisher, rice color sorter, rice packing machine, etc. It uses the elevator to connect them and to make the whole line complete and automatically work.

This 15ton-per-day auto rice mill machine can make continue to work. The users just feed the paddy into the hopper and then operate the machine with the control box for different machine work is Ok. High working efficiency automatic working compact structure easy to operate and maintain.

15T/D Complete Rice Mill Plant Working Process

The 15T/D complete rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

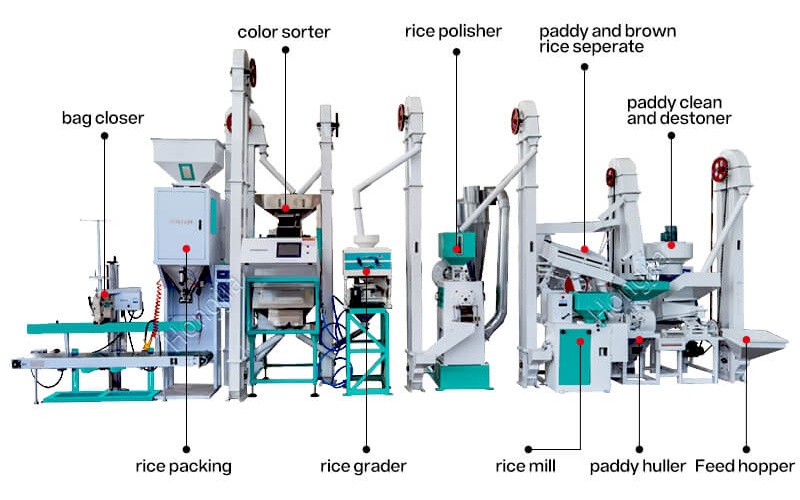

The Modern Rice Milling System Consists of:

Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;

Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.

Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.

White Rice Grader: The broken rice in the finished rice is separated to improve the quality of the finished rice

Rice Polisher: improving the appearance of milled rice by removing remaining bran particles and by polishing the exterior of the milled kernel, making the white rice smoother and brighter

Rice Color Sorter: Selecting the other colors of rice or mildew rice from white rice, to remove the bad rice, black rice, yellow rice, half-husked rice, etc

Rice Packing Machine: Set the weight of each bag of maters for packing according to your needs and pack the white rice in the bag, preparing milled rice for transport to the customer.

Magnetic Separating: Remove the magnetic material in the rice, so as not to damage the subsequent rice milling equipment

Grain silos: Cache the produced white rice

15T/D Complete Rice Mill Plant Features

1. Fully automatic rice production line, less power consumption

2. Compact structure, nice performance, small volume

3. Modern design and high-efficiency output

4. Low noise and less consumption

5. Easy to operate and maintain

6. Output rice with high quality, low broken rate

7. Reasonable price
