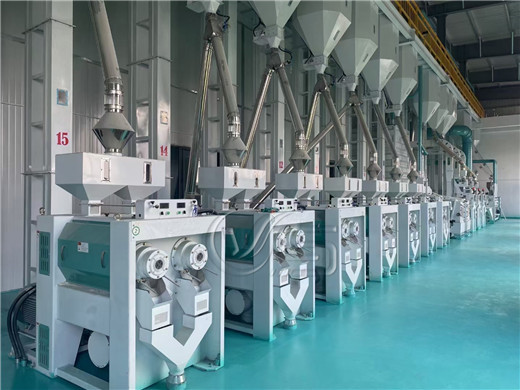

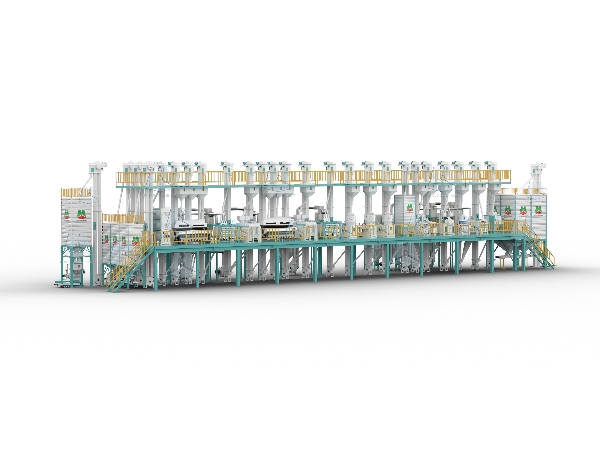

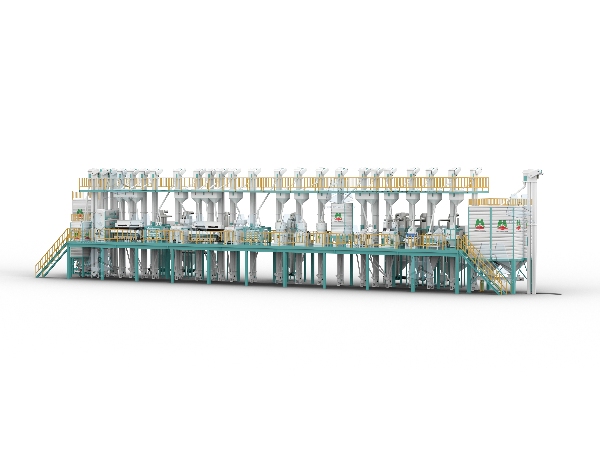

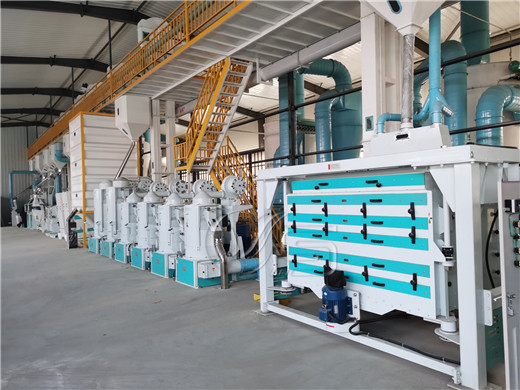

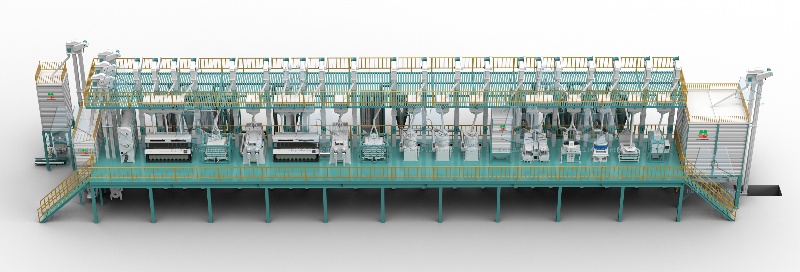

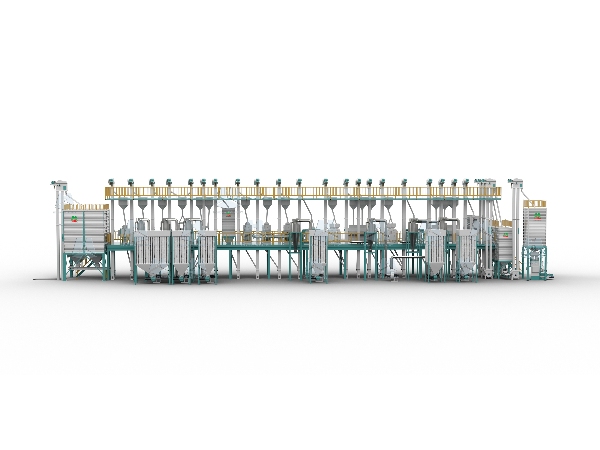

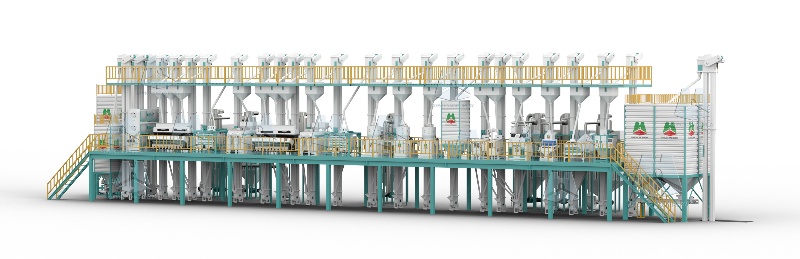

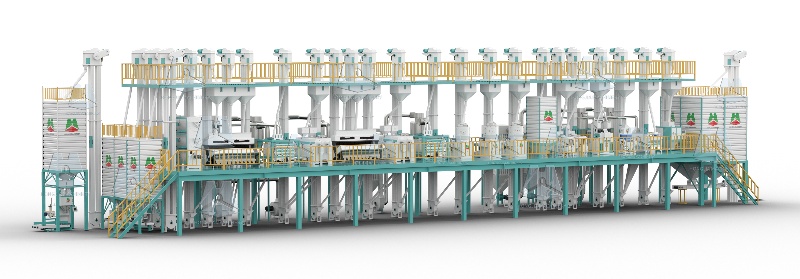

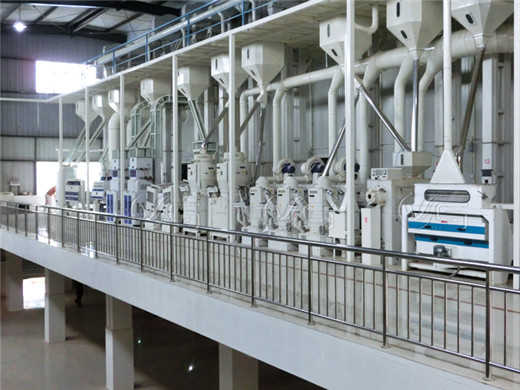

200T/D Rice Mill Plant Introduction

Our 200T rice mill plant is a large customized rice mill production line. It contains a paddy rice cleaner machine, rice destoner machine, rice huller machine, paddy rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, and rice elevators.

Machine details and install size can be customized according to your needs, for the rice mill processing production line also can be customized into different capacities for your needs. This model rice mill production line is suitable for larger farmers or some rice wholesale factories, we can send technical workers to go to help the client to make the machine installation, and make the drawing for the machine set designs.

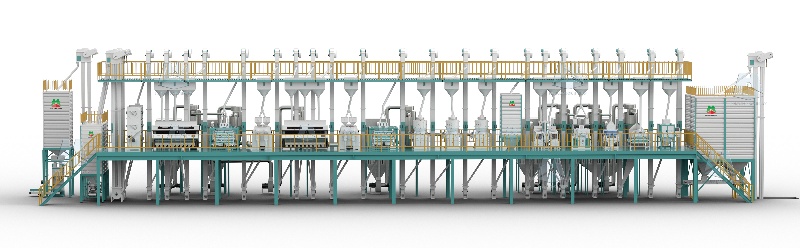

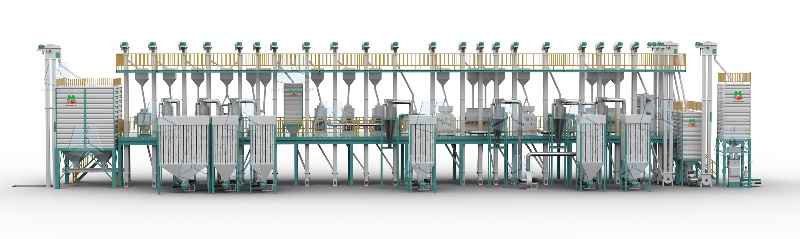

200T/D Complete Rice Mill Plant Working Process

The 200T/D complete rice mill machine can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

The Modern Rice Milling System Consists Of:

Paddy Cleaning Machine: can clean bigger impurities in Paddy;

Rice Destoner: can remove the stone from the paddy, to get clean paddy;

Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;

Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;

Rice polisher: polishes the rice surface by spraying water, which forms a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice;

Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc;

Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking has been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper;

Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bags capacity can choose 1-50kg per bag for your needs;

200T/D Rice Mill Plant Features

1. This rice processing equipment can be used to process both long-grain rice and short-grain rice(round rice), suitable to produce both white rice and parboiled rice, with a high output rate, a low broken rate;

2. Both vertical-type rice whiteners and horizontal-type rice whiteners are available;

3. Multiple water polishers, color sorters, and rice graders will bring you more shining and higher precision rice;

4. The pneumatic rice huskers with auto feeding and adjustment on rubber rollers, have higher automation and are easier to operate.

5. Usually use a bag type of dust collector to collect in high efficiency the dust, impurities, husk, and bran during processing, bringing you a good working environment; The pulse dust collector is optional;

6. Having a high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing.

7. Having various matching specifications and meeting the requirements of different users.
