20T/D Complete Rice Mill Plant Introduction

The 20T/D complete set of rice milling projects is a small complete set of rice mills newly designed by our company, which can process about 1100-1400 kg of rice per hour and obtain about 800-1000 kg of white rice. Only one process is needed to process rice into national standard white rice. Our rice milling machine contains all the machines needed to process paddy rice into rice, such as a combined rice cleaning machine, paddy hulling machine, rice separator, rice milling machine, rice elevator, rice polishing machine, rice grading machine, Rice sorting machines, and rice packaging machines, etc.

20T/D rice processing machine can be designed and customized according to your special requirements. It has a very good rice separation effect, high working efficiency, and small size, and can be conveniently set up at any place or station, or farm according to the needs of users. Easy operation and maintenance, low breakage rate. It is the most ideal rice milling machine for cities, villages, and small and medium-sized rice processing plants.

20T/D Complete Rice Mill Plant Working Process

The 20T/D combined rice mill can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

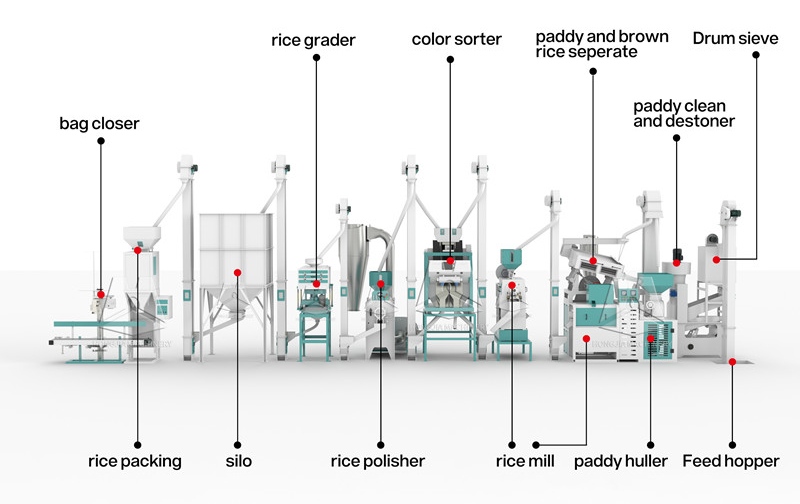

The Modern Rice Milling System Consists of:

Hopper: feeding raw paddy material to the rice mill machine

Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.

Rice husker: remove husk from paddy.

Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.

Rice polisher: polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.

Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.

Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.

20T/D Rice Mill Plant Advantages

1. Twice rice mill machine has lower pressure in the polishing chamber, lower break rice rate.

2. Water polishers, color sorters, and rice graders' other systems will bring you high-precision rice.

3. It is the ideal machine for milling various rice, such as long-shaped rice, polished round-grained rice, sticky rice, Thailand jasmine rice, basmati rice, etc; also can press parboiled paddy.

4. Having a high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing.

5. Rice milling speed is fast, the complete set of equipment has a daily output of about 20 tons.

6. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient.

7. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate.

8. Our processing technology: Optical fiber cutting, CNC bending, CNC machine tools, spraying process, high-position spray baking, etc.

9. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate.

10. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, and has low vibration, low noise, and low dust.
